N N engineering is a
well-known mould cooling baffle manufacturers and suppliers in Pune. Having worked in
precision engineering over the years, we focus on manufacturing high quality parts that
will increase the performance of the mould, increase the efficiency, and maintain
quality parts. We are a reliable supplier of precision, durability, and reliability to
customers in the injection moulding business.
Mould Cooling Baffles are parts of injection moulds that are designed and fitted
accurately to direct the flow of cooling fluid through the channels of the mould. We are
primarily aimed at maintaining even temperature throughout the mold cavity, this is
critical to creating quality molded components with a low number of defects. We cause
the cooling fluid to flow through the parts efficiently, resulting in shorter cycle
times, eliminating warpage or shrinkage, and preserving the dimensional correctness of
the parts. Also, cooling baffles are used to enhance the general efficiency of the
molding process and increase the lifespan of the mould.

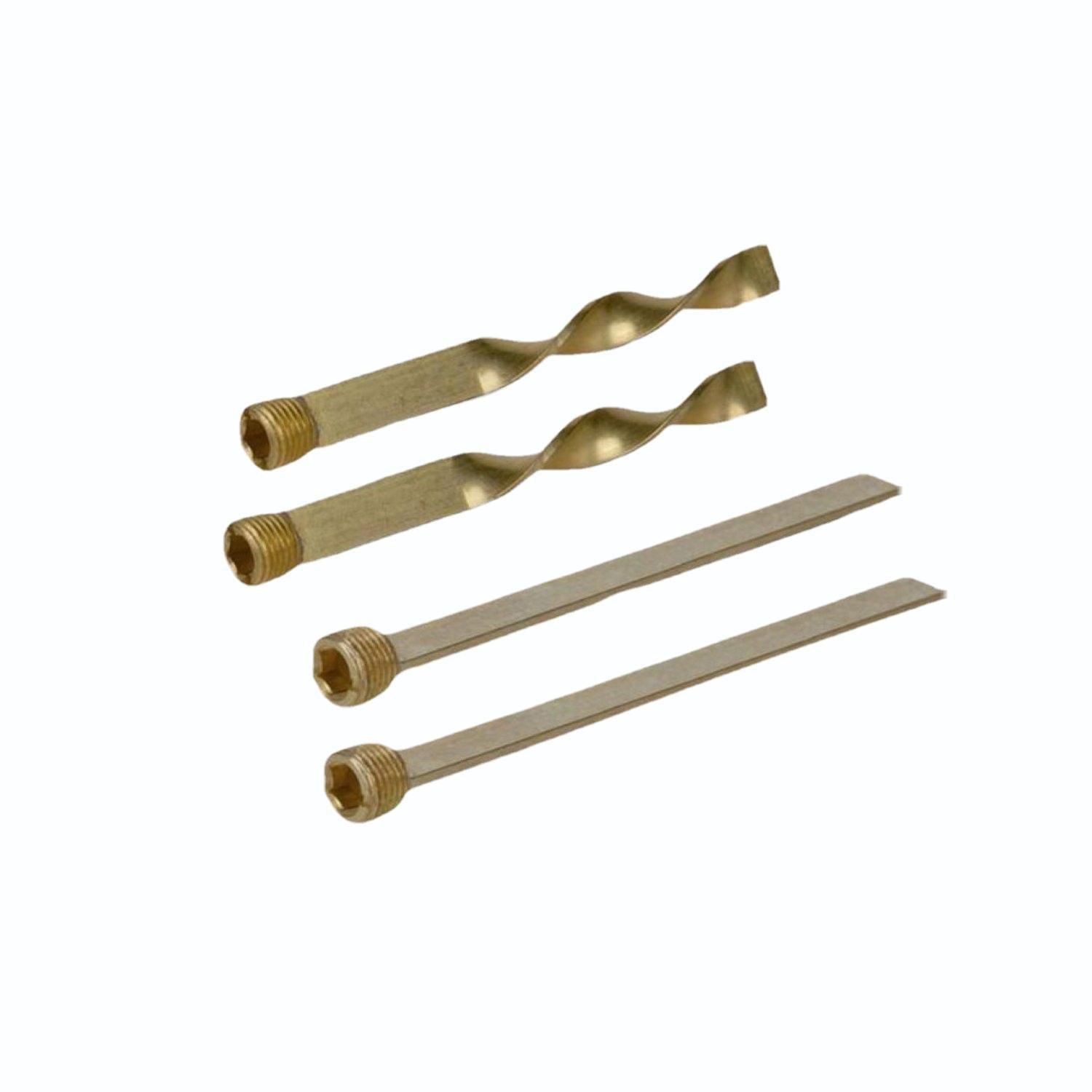

Types of Baffles
Being as well-established mould cooling baffle manufacturers in Pune, these are the types of
baffles as per requirement which are given below.
- Straight Baffles: These are straight simple and flat plates which are
installed in the cooling channels. It forms two distinct routes that the coolant
follows. A typical option with simpler geometries in which efficient cooling is required
in certain locations.
- Spiral Baffles: The spiral shape extends the cooling line and assists
in keeping the baffle in the channel center. The design mould cooling baffle suppliers
in Pune is capable of increasing the rate of flow, and increasing the cooling
effectiveness by forcing a greater amount of coolant to be made to move up and over the
end of the baffle.
- Plastic Baffles: It is produced using the modern thermoplastics such as
polypthalamide. The proposed advantages over the traditional brass baffles are a major
increase in the heat transfer performance of these baffles and the fact that
glycol-based coolants may be used in this type of baffle at high temperatures.
Technical Specifications of Mould Cooling Baffle
We have added below a technical sheet of mould cooling baffle in Pune that provides more
technical information such as:
| Parameter |
Specification |
| Material |
Alloy Steel, Stainless Steel, Brass, Plastic |
| Design Types |
Straight, Slotted, Spiral, Offset, Custom |
| Size Range |
Standard & Customized |
| Surface Finish |
Heat Treated / Nitrided / Coated |
| Cooling Medium |
Water / Oil |
| Compatibility |
Supports ejector systems, incl. sleeve ejector pin |
Benefits & Features of Mould Cooling Baffle:
As the experienced mould cooling baffle suppliers in Pune, provide different types of
benefits.
- High-Performance Materials: Here a strong material is used such as
brass, copper alloy, stainless steel, or engineering-grade plastic that is based on
thermal and mechanical needs.
- Precision Engineering: Our products are machined to fine limits to
allow easy incorporation with mould components such as sleeve ejector pin systems.
- Optimised Coolant Flow: Our Plastic Baffles - DME ribbed, slotted, or
spiral designs promotes turbulence, that results in faster and more uniform cooling.
- Corrosion-Resistant Surface: Mould cooling baffle manufacturers in Pune
acetylated to ensure the life and high-performance during repeat cycles of cooling.
- Flexible Sizes and Styles: We professionally design to meet your
specific moulding needs and are available in a variety of dimensions, finishes, and
configurations – including Plastic Baffles-DME styles.
Applications of Mould Cooling Baffle:
As the leading mould cooling baffle manufacturers in Pune, we provide various advanced
features and widely used in various applications.
- Plastic Injection Moulding: The best choice when the walls of the mould
are deep and thick or the geometries are complicated and need to be cooled at a specific
point.
- Die Casting: Enhances thermal management in die cavities for aluminium
or zinc components.
- Automotive & Electronics: Mould cooling baffle suppliers in Pune is
appropriate for components with high precision and low tolerances with minimal warpage.
- Consumer Goods & Packaging: Provides uniform cooling of daily
consumables such as containers, caps, and detailed moulded components.
N N Engineering is a prominent mould cooling baffle manufacturers and suppliers in Pune and
specializes in components that streamline the injection moulding process. Our baffles are
made of high-performance materials, which guarantee even cooling, eliminate flaws, and
minimize time spent on a cycle. Our baffle blades in plastic injection molds, mould cooling
baffles products are designed to enhance productivity and improve the lifespan of the mould
in plastic moulding, die casting and specialized industries.
